Advanced Technology Manufacturing – Solar PV, Semiconductor & Microelectronics, Li-ion Battery
Modular partitions engineered for durability, compliance, and adaptability.
Modular partitions engineered for durability, compliance, and adaptability.
Modular partitions engineered for durability, compliance, and adaptability.
Section : 56 x 55 mm
Grid Size : 1200 x 1200 mm
Grade : 6063-T5
Finish : Powder Coated/Anodizing Load Bearing
Capacity : 150 kg/sqm
Section : 56 x 70 mm
Grid Size : 1200 x 1200 mm
Grade : 6063-T5
Finish : Powder Coated/Anodizing Load Bearing
Capacity : 250 kg/sqm
Section : 60 x 85 mm
Grid Size : 1200 x 2400 mm
Grade : 6063-T5
Finish : Powder Coated/Anodizing Load Bearing
Capacity : 450 kg/sqm
Specifications
50 mm thick Aluminum Honeycomb
0.5 mm Polyester color-coated steel, non-conductive surface with protective film.
Aluminum honeycomb
(21 mm cell size, 0.05 mm foil thickness).
Polyurethane base.

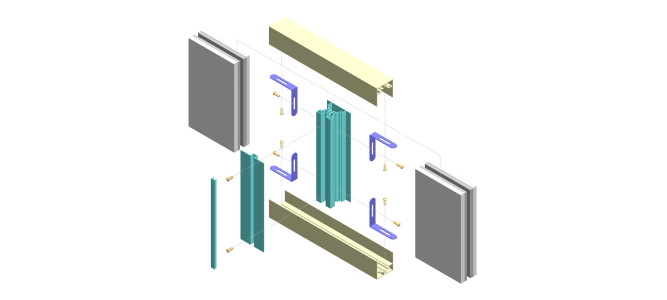

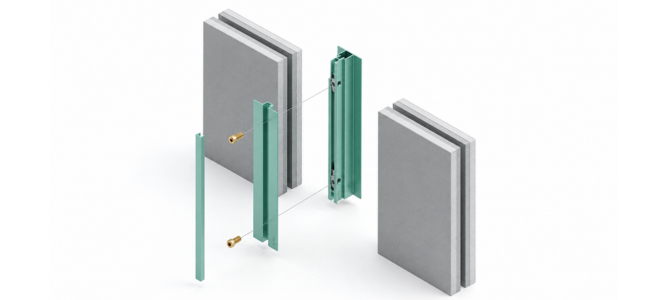

Our Stud-less Wall Panel System are designed with a special aluminum profile system, ensuring quick installation. Suitable for Cleanroom Class 1 to Class 100K.
50 mm thick Aluminum Honeycomb
0.5 mm Polyester color-coated steel
Aluminum honeycomb
(21 mm core cell size)
EN13501 non-combustible

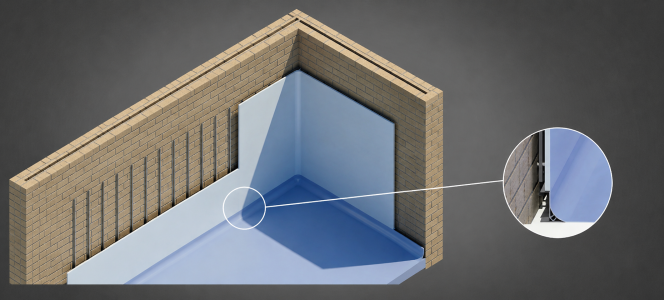

AMSPL offers Cladding Wall Panel with ease of installation, durability, and superior finish. Designed for environments from Class 1K to Class 100K, cladded to civil structure walls.
Specifications
Aluminium Honeycomb
(6 mm or 12 mm thickness)
0.5 mm Polyester color-coated steel
Aluminum honeycomb
(10 mm core cell size)
Non-combustible material

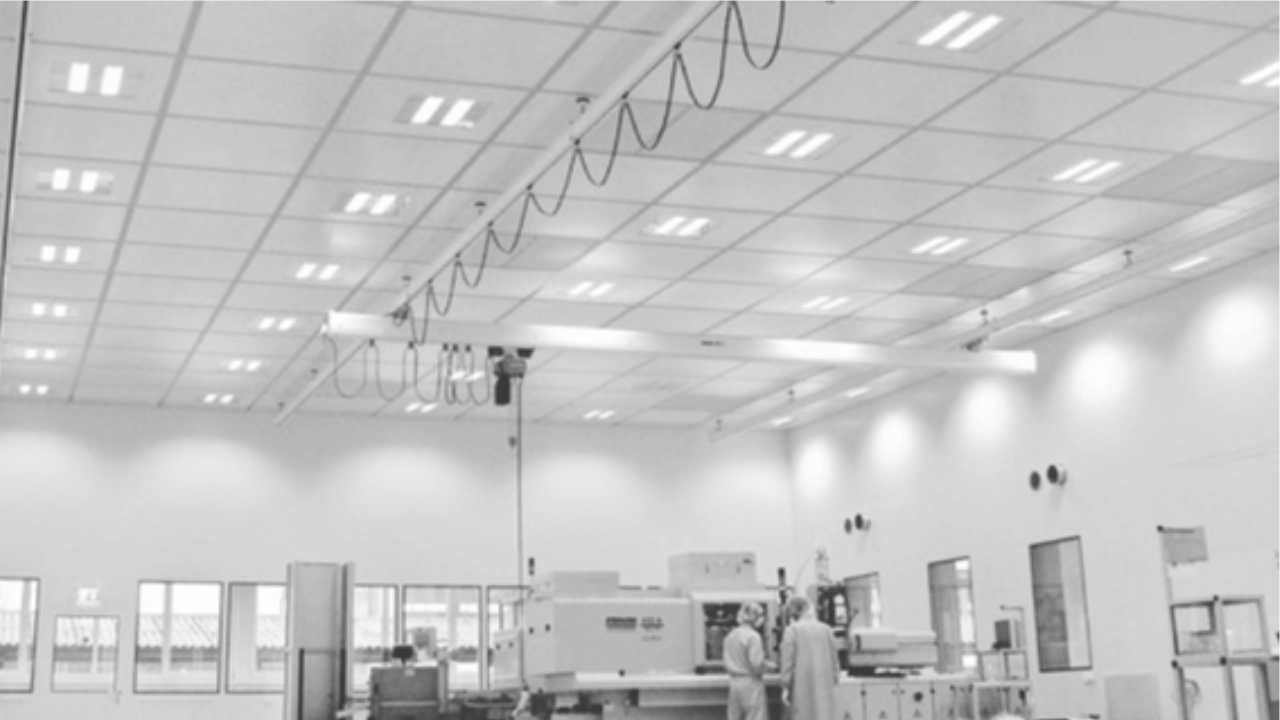

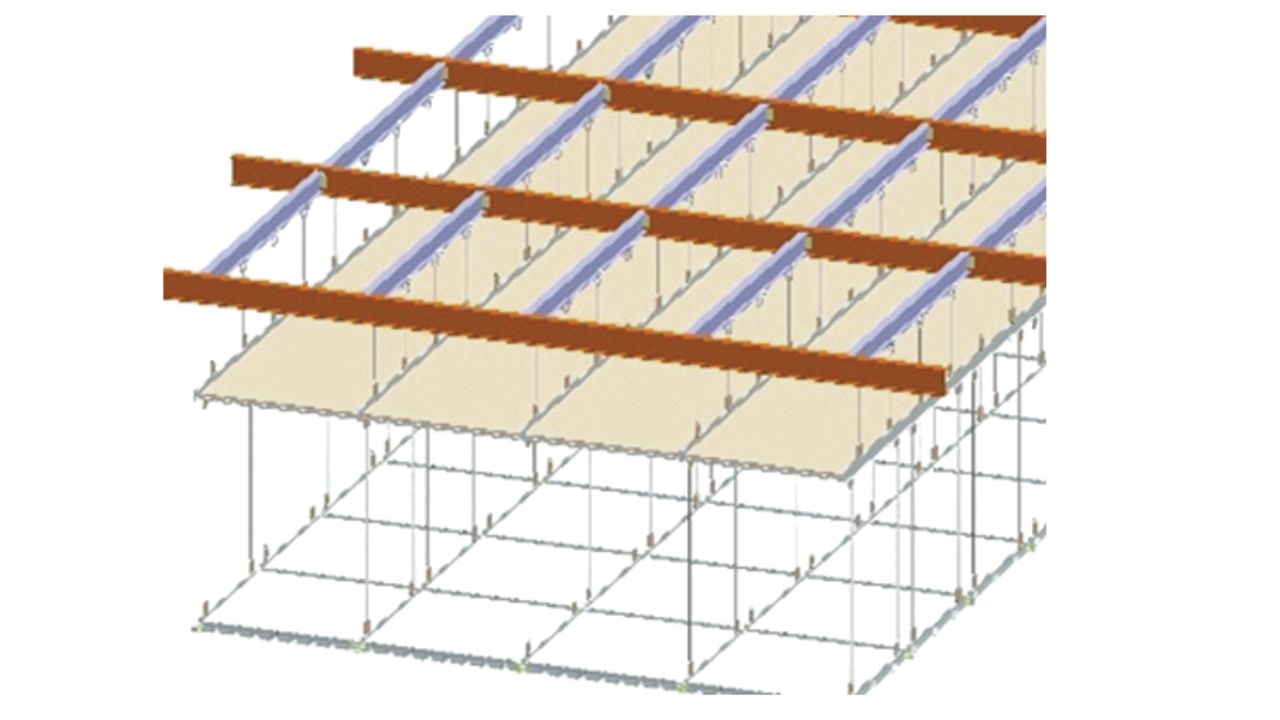

Our Walkable Ceiling Grid System provides a robust, versatile solution for heavy-duty cleanroom environments, designed to support loads such as live load, utility racking, and FFUs. It ensures faster assembly and efficient installation with solid aluminium alloy cross connectors and one-way locking T-shape bolts, minimizing construction time. Suitable for Cleanroom Class 1 to Class 100K, ensuring a clean environment.
Specifications
30 mm thick Aluminium Honeycomb Ceiling Panel
0.5 mm Polyester color-coated steel
Aluminium Honeycomb
(10 mm core cell size,
0.06 mm foil thickness)
Height: 70 mm,
Width: 55 mm - 56 mm, Material: Aluminium Alloy (6063-T5)

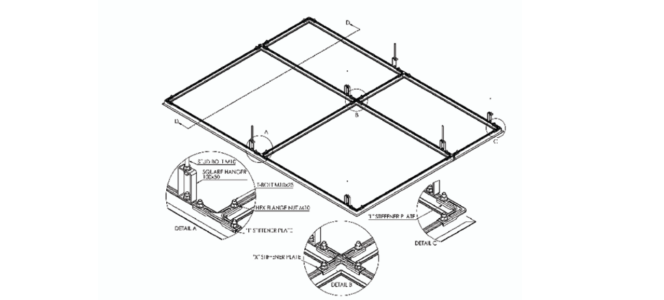

Our Non-Walkable Ceiling Grid System offers a comprehensive solution for cleanroom ceilings designed to carry lightweight loads. It ensures quick and easy assembly with steel cross connectors and one-way locking T-shape bolts, resulting in efficient installation and reduced construction time. The system is non-progressive, demountable, and easily relocatable. Suitable for Cleanrooms Class 100 to Class 100K environments.
Specifications
Ceiling Blank Panel, Non-combustible
Cold roll metal sheet, thickness 1.0 mm or 1.2 mm, powder-coated finish
570 x 1170 mm or
1170 x 1170 mm
Light Duty,
Height: 35 mm - 55 mm,
Width: 38 mm - 56 mm, Material: Aluminium Alloy (6065-T5)
Excellence engineered, setting new standards in cleanroom technology
