Pharmaceutical & Biotech

Pharma cleanrooms require strict contamination control and compliance.

Pharmaceutical & Biotech

Pharma cleanrooms require strict contamination control and compliance.

Modular Wall Partition

Ceiling Panels

Return Air Risers

View Panel

Metal Doors

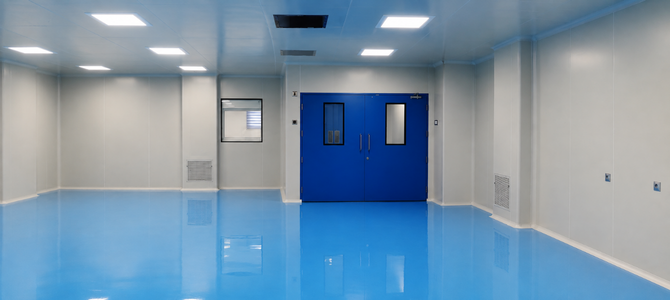

Modular Wall Partition

Powder Coated Galvanized Iron (PCGI)

Key Features

Crafted from 0.6 mm /0.8 mm GPSP Sheet with 80~120 GSM zinc coating.
60~80µ powder-coated surface with 15~25% gloss level ensures higher scratch and chemical resistance.
Non-shedding surfaces
Resistance to abrasion, chemicals, and corrosion with UV protection.
Tailor-made panels with most of the services provided as inbuilt.

Specifications

Panel Type : Non-Progressive and Progressive

Panel Thickness : 50, 80, 100 mm

Infill : Rockwool, PUF, PIR, Papercore Honeycomb

Height : Up to 6 Meters

Width : Standard – 1200 mm & Non-Standard

Accessories

Floor Track : Raised / C Type as per application

Cutouts : Customized factory-made /on-site

Sealant : Food-grade Silicon

Inbuilt Services : Conduits, Cutouts, Riser, Service panels, Modules

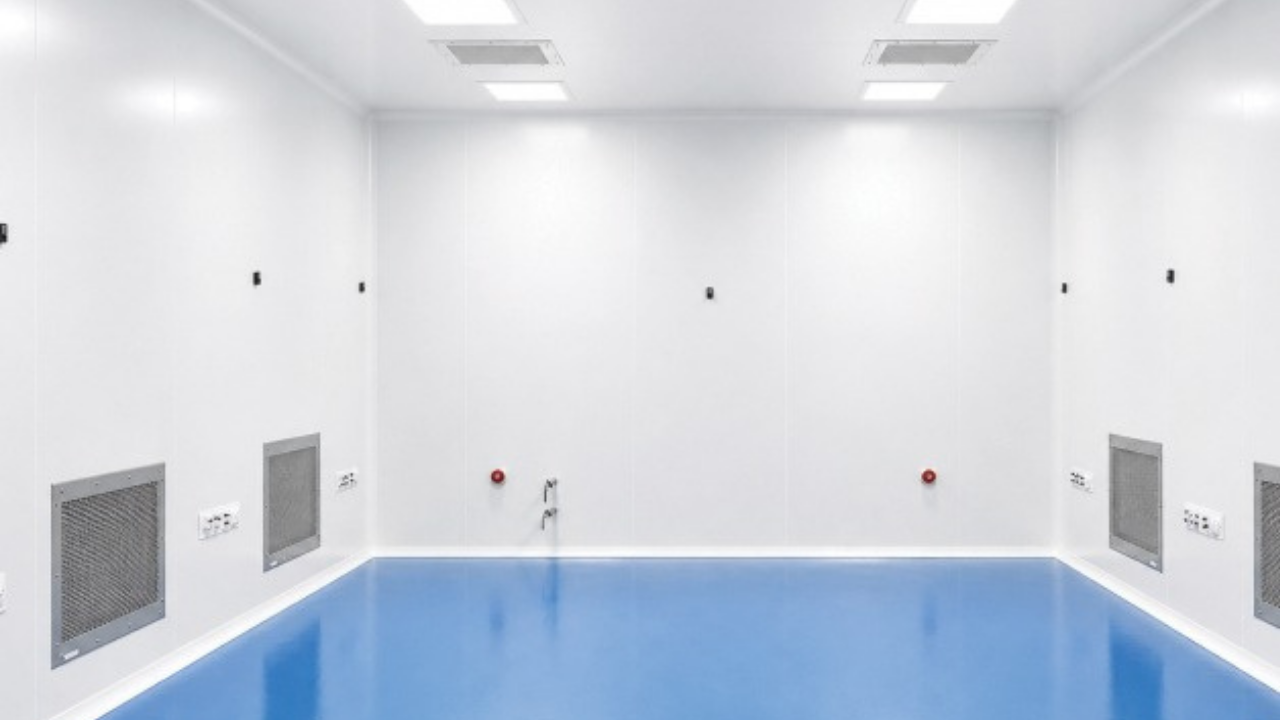

Pre-Painted Galvanized Iron (PPGI)

Key Features

Fabricated with 0.6/0.8 mm thick GI pre-painted sheets.
Pre-painted finish of 20~25 µ coating on the exposed side and 30~40% gloss level.
Smooth, non-shedding, and easy-to-clean surfaces.
Resistance to abrasion, chemicals, and corrosion with UV protection.
Quick production and site installation, as the design of the layout is done with a maximum number of standard width panels and at-site cutouts.
No Joint in panels upto 6 Mtrs height.

Specifications

Panel Type : Non-Progressive and Progressive

Panel Thickness (mm) : 50, 80, 100 mm

Infill : Rockwool, PUF, PIR, Papercore Honeycomb

Height : Up to 7 Meters

Width : Standard – 1200 mm and Non-standard

Accessories

Floor Track : C Type

Cutouts : Customized factory -made/on-site

Sealant : Food-grade Silicon

Inbuilt Services : Conduits, Cutouts, Riser, Service panels

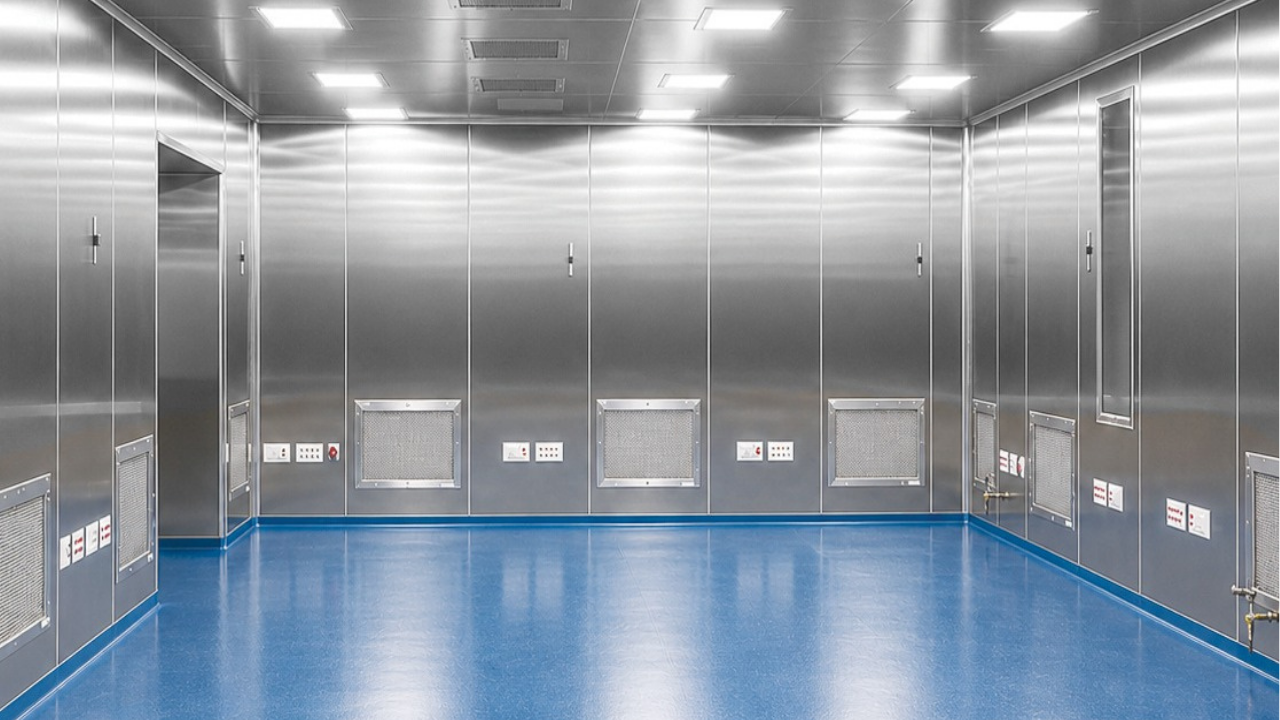

Stainless Steel Panel (SS)

Key Features

Fabricated with 0.8 mm thick SS304 sheet on one / both skins
4 Satin finish (240 Grit) SS304 Sheet used
Smooth and easy-to-clean surfaces.
Resistance to abrasion, chemicals, and corrosion.
Quick production and site installation.

Specifications

Panel Type : Non-Progressive, Progressive

Panel Thickness (mm) : 50, 80, 100

Infill : Rockwool, PUF, PIR, Papercore Honeycomb

Height : Up to 6 mtr.

Width : Standard – 1200 mm and Non-standard

Ceiling Panels

Walkable Ceiling

Key Features

Crafted from 0.6 mm/0.8 mm GPSP Sheet with 80~120 GSM zinc coating PCGI/PPGI skin.
Resistance to abrasion, chemicals, and corrosion with UV protection.
Sturdy hanging/ support system for a better strength
Easy and faster installation
Possibility of self-supported ceiling to be rested on the wall panels wherever possible. This reduces the number of supports required and hence the ease of movement.

Specifications

Panel Thickness (mm) : 50, 80 mm

Load bearing : 150 KG/SQM (2 persons with toolbox)

Infill : Rockwool, PUF, PIR, Papercore Honeycomb

Panel Length : Up to 4.0 Meter. (as per design and infill)

Width : Standard – 1200 mm and Non-standard

Accessories

Cutouts : Customized factory-made cutouts for the PCGI and at site cutouts for the PPGI panels

Sealant : Food-grade Silicon

Inbuilt Services : Cutouts for lights/ HVAC etc.

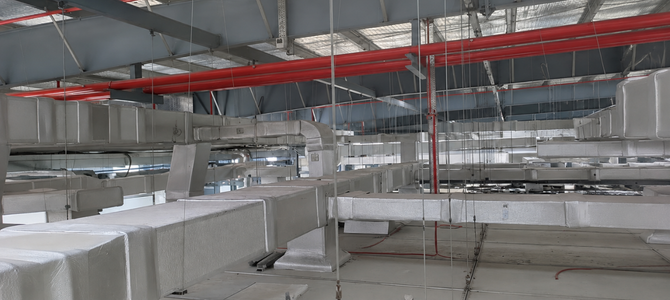

Ceiling Support System:

Turn-buckle system for ceiling hanging
Various options for PEB and Civil Slab are available
Aluminum flush type truss system for ceiling support

Return Air Risers

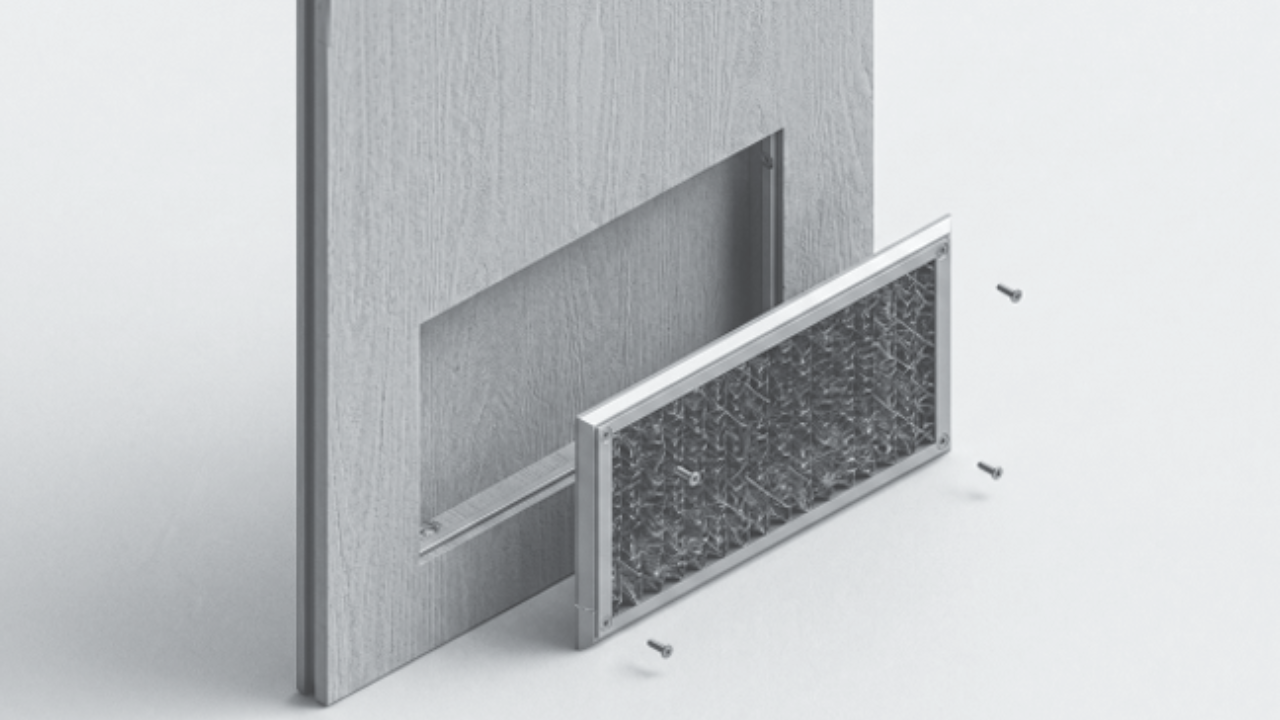

Inbuilt Return Air Risers

Factory made duct, cutouts, coved surface
Space saving method for cleanrooms providing flushed surface
Duly stiffened surface of the riser duct
Grill construction in SS-304 Or GI Powder coated finish
Grill made of 1.2 mm thick sheet with perforation used
Option of grills with Doom nuts
Option of grills with Magnetic Catcher
150mm Flange for duct connection

External Return Air Risers

Factory made cutouts for grill fixing
Box type risers or Riser chase (within two panel walls)
Higher return air suction capacity as compared to Inbuilt risers
Grill construction in SS-304 Or GI Powder coated finish
Grill made of 1.2 mm thick sheet with perforation used
Option of grills with Doom nuts
Option of grills with Magnetic Catcher

Accessories

Pre-Filter
Duct Damper

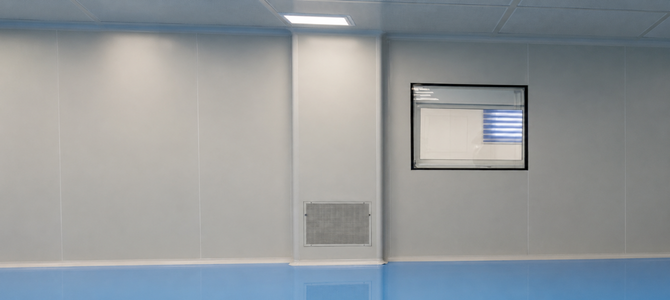

View Panel

Key Features

View panel in single glass for Laboratories.
Double glazed view-panels for cleanroom applications
Aluminum Powder coated OR SS Channels for better aesthetics
Silica Gel pockets to prevent condensation
Large sized view panels and DGU Units in windows also available
Modular design for an ease of installation

Metal Doors

Door frame made up of 1.2 mm thick GI sheet and door leaf made up of 0.8 mm thick GI Sheet
60~80µ powder-coated surface with 15~25% gloss level for both door leaf and door frame
SS Doors for specific applications
Different fixing arrangements for partition doors and blockwork doors
Jamb size as per the panel thickness ensures flush design.
